PC STORAGE UPGRADE GUIDE

How to Add More Storage to Your Gaming PC

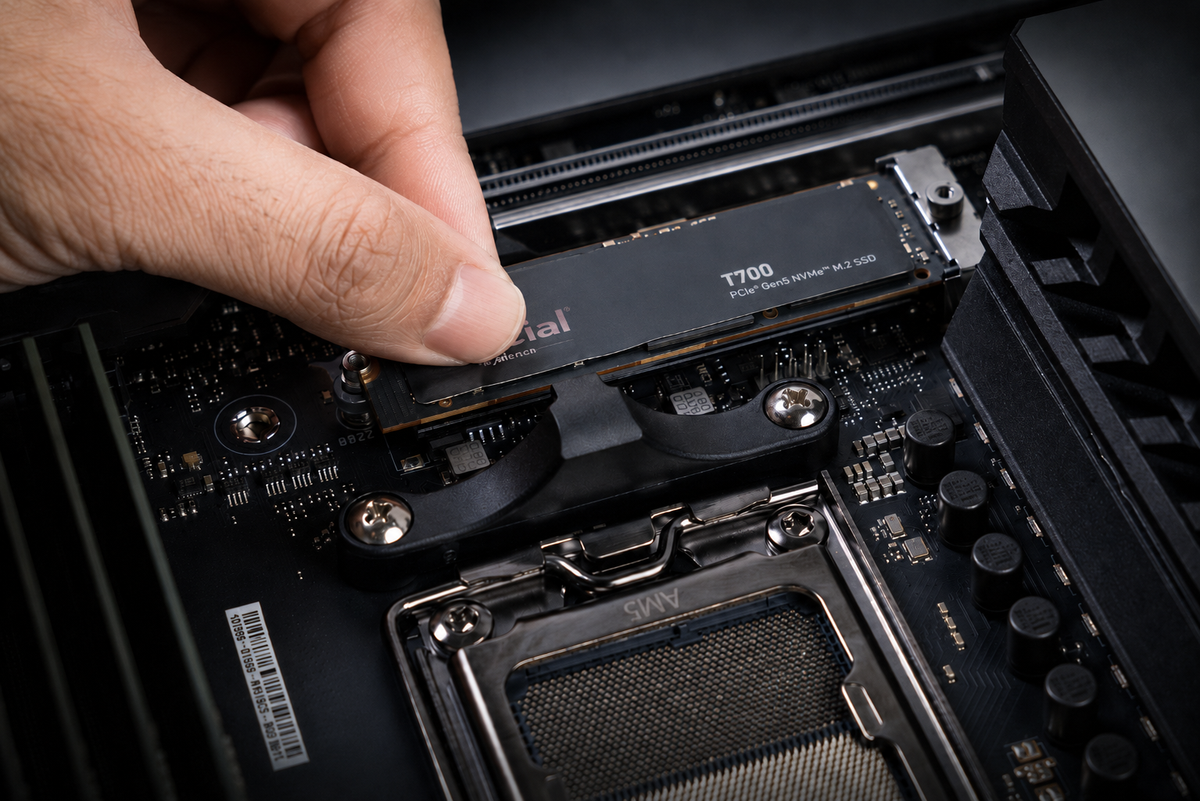

Hand installing an M.2 NVMe SSD into a gaming PC motherboard to add more storage

Running out of space for new games, recordings, applications, or creative projects? This guide explains how to choose the right storage upgrade, including M.2 NVMe SSDs, SATA SSDs, hard drives, and external drives. Learn how to check compatibility, install your drive safely, configure it in Windows 11, and troubleshoot common detection issues.

M.2 NVMe SSD PC STORAGE DRIVE INSTALLATION WINDOWS 11 SETUP
Hand installing an M.2 NVMe SSD into a gaming PC motherboard to add more storage

QUICK ANSWER

Which Storage Upgrade Is Best for Your Gaming PC?

Gaming PC storage comes in several formats, including M.2 NVMe SSDs, SATA SSDs, traditional hard drives, and external USB drives. Each option differs in speed, capacity, installation requirements, and cost.

For most modern gaming PCs, an M.2 NVMe SSD is the best overall choice because it installs directly on the motherboard, requires no separate cables, and delivers excellent performance. SATA SSDs are useful when M.2 slots are full, while hard drives provide affordable bulk storage. External drives are the easiest to add and work well for backups and portable files.

Every Valhalla gaming PC is built with high-speed M.2 NVMe storage as its primary drive for responsive performance, fast loading times, and dependable everyday use. Use the table below to compare each storage option and choose the best fit for your system.

Your primary operating system drive is already installed, configured, and ready to use when your system arrives. This guide is intended for adding secondary storage.

STORAGE COMPARISON

Choose the Right Storage Upgrade

Not every storage drive offers the same speed, capacity, compatibility, or installation process. Use the comparison below to determine which option best fits your gaming PC.

Storage type Best for Speed Installation What to know
M.2 NVMe SSD Games, applications, and high-speed storage Very Fast Installs directly on the motherboard Best option for most gaming PCs when a compatible M.2 slot is available
2.5-inch SATA SSD Additional game and general-purpose storage Fast Requires SATA data and power cables Useful when M.2 slots are unavailable or already occupied
3.5-inch hard drive Backups, recordings, media, and archives Slower Requires a drive mount, SATA data, and power Provides large capacities at a lower cost
External drive Backups and portable storage Usually Slower Connects through USB Easiest option because the PC does not need to be opened

Performance, compatibility and available connections vary by system. Check your specifications before purchasing storage.

BEFORE YOU BUY

Check Storage Compatibility Before You Upgrade

Before buying a new drive, confirm your gaming PC has an available M.2 slot or SATA port, enough mounting space, and any required cables or power connections.

Check your motherboard and case specifications to verify the supported drive size, interface, and installation access. Valhalla customers can contact support to confirm compatible storage upgrades.


An M.2 slot does not automatically support every M.2 SSD. Confirm that the slot supports PCIe NVMe, and the drive’s physical length.

Confirm compatibility before purchasing. An unsupported drive may not fit, connect, or appear in Windows.

Available Connection

Open M.2 Slot or SATA Port

Drive Size & Interface

Compatible Format and Length

Mounting Space

Required Bay or Mounting Point

Power & Installation Access

Cables, Power, and Clearance

Confirm compatibility before purchasing. An unsupported drive may not fit, connect, or appear in Windows.

M.2 NVME INSTALLATION

How to Install an M.2 NVMe SSD

An M.2 NVMe SSD installs directly on the motherboard without separate cables. Before installation, check your motherboard manual, shut down the PC, switch off the power supply, unplug it, and avoid touching the drive’s gold connector.

01

Locate an Available M.2 Slot

Check the motherboard manual to identify a compatible slot. Some slots may be hidden beneath a heatsink or behind the graphics card.

02

Remove the M.2 Heatsink

Unscrew or release the motherboard heatsink, if there is one. Remove any protective film from the thermal pad before reinstalling it.

03

Insert the SSD

Align the connector and slide the drive into the slot at a slight upward angle. It should insert smoothly without excessive force.

04

Secure the Drive

Gently press the SSD toward the motherboard and secure it using the included screw, latch, or tool-free retention mechanism.

05

Reinstall the Heatsink

Place the heatsink back over the SSD and tighten it evenly. Do not overtighten the screws.

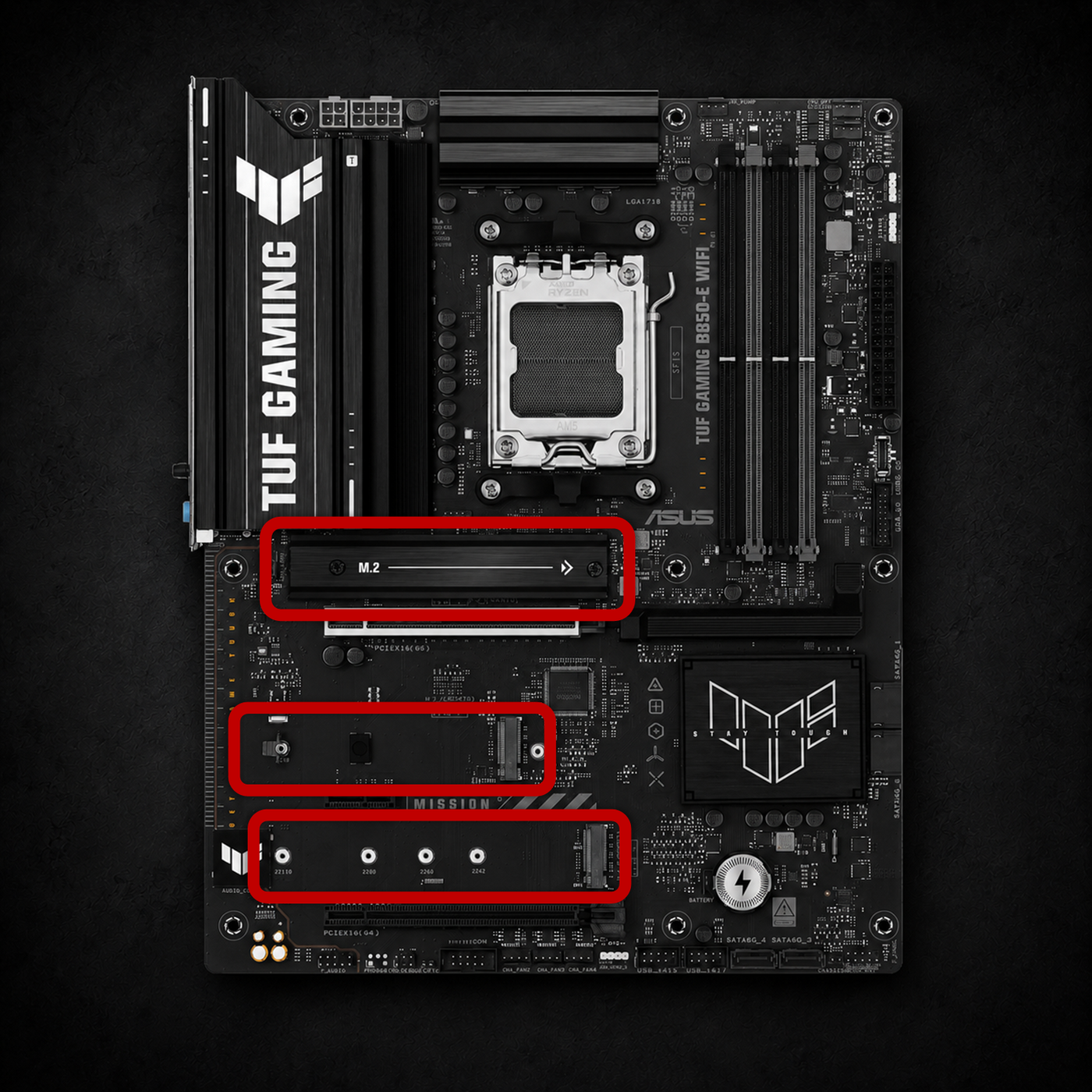

Gaming PC motherboard with common M.2 NVMe SSD slot locations highlighted

The highlighted areas show common M.2 slot locations. Your motherboard may have fewer slots or place them beneath heatsinks, so check the manual before installation.

SATA DRIVE INSTALLATION

How to Install a SATA SSD or Hard Drive

A SATA SSD or hard drive mounts inside the case and requires two connections: a SATA data cable to the motherboard and a SATA power cable from the power supply. Confirm that your case has an available mounting location and that the required cables are included before beginning.

01

Locate an Available Drive Mount

Find a compatible 2.5-inch or 3.5-inch mounting tray inside the case.

02

Secure the Drive

Attach the drive to the tray or mounting point using the included screws or tool-free mechanism.

03

Connect the SATA Data Cable

Connect one end to the drive and the other to an available SATA port on the motherboard.

04

Connect SATA Power

Connect a SATA power connector from the power supply to the drive. Use only a modular SATA power cable confirmed compatible with that exact PSU model. Never reuse a cable from another power supply unless the manufacturer specifically confirms compatibility.

05

Check Both Connections

Make sure both cables are fully seated and positioned away from fans before closing the case.

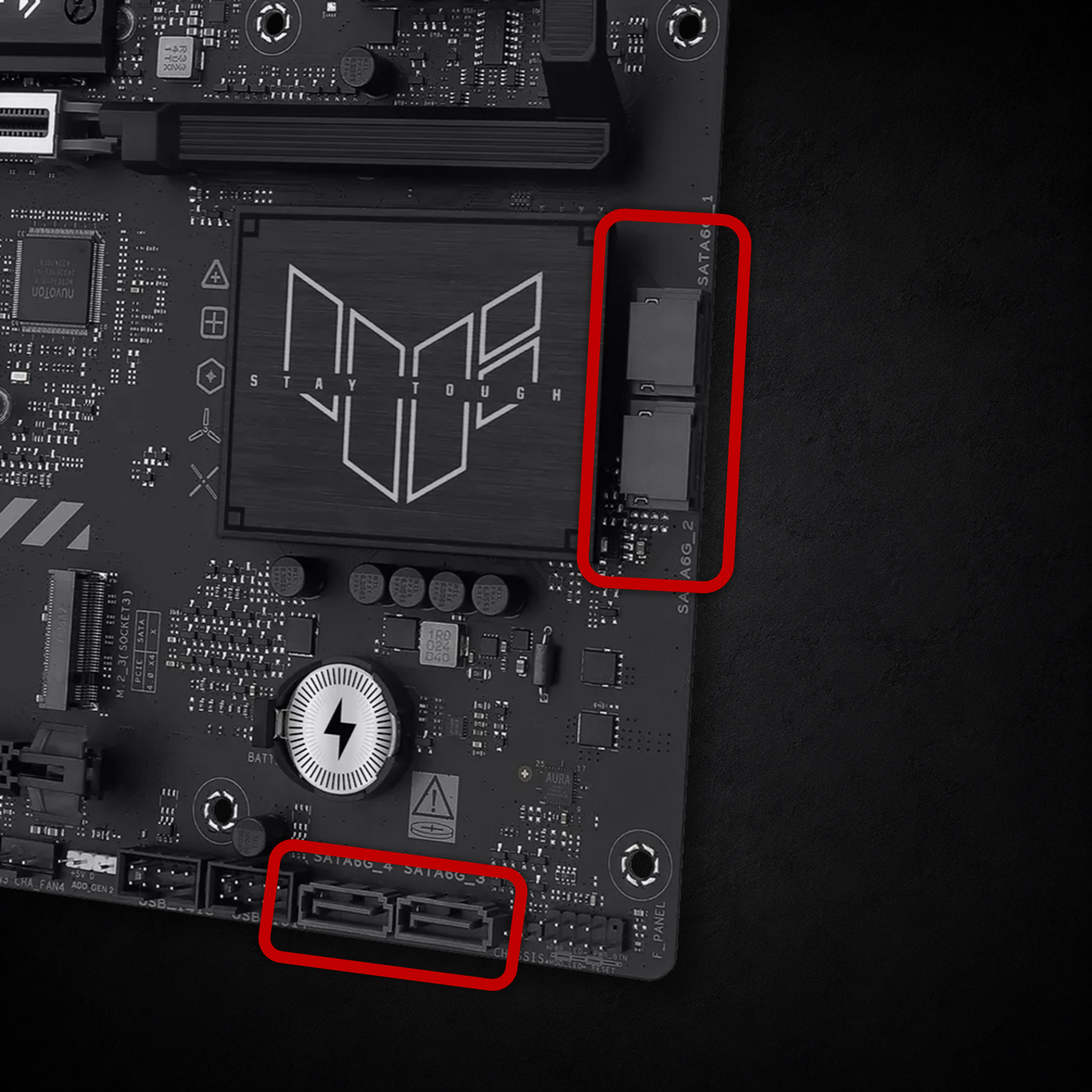

Gaming PC motherboard showing SATA ports used to install a SATA SSD or hard drive

The highlighted connections show the SATA data and SATA power ports required for an internal SATA drive.

EXTERNAL STORAGE

Choosing an External Drive for Your Gaming PC

External drives are the easiest way to add storage because they connect through USB and do not require opening the PC. An external SSD is better suited for games, large transfers, and frequently accessed projects, while an external hard drive provides more affordable capacity for backups, recordings, and archived files.

Before purchasing, consider the drive’s capacity, connection speed, portability, and power requirements. Connect it to a high-speed USB port that supports the drive’s rated interface, since a slower connection can limit performance. For games and performance-sensitive applications, an internal M.2 NVMe SSD remains the preferred option.

Most preformatted external drives appear in File Explorer after being connected. If a new, empty drive is detected but does not appear, it may need a drive letter or volume created through Disk Management. Do not initialize or format a previously used drive unless you have confirmed that its existing data is no longer needed.

Remember that a Windows restore point does not replace a separate backup of your important files.

WINDOWS DRIVE INITIALIZATION

Make Your New Storage Available in Windows 11

After installation, Windows may detect the new SSD or hard drive without immediately showing it in File Explorer. New internal storage often needs to be initialized, partitioned, and formatted before it can be used for games, applications, or files.

Right-click the Start button and open Disk Management, then identify the newly installed drive by its capacity and its Unknown, Not Initialized, or Unallocated status. For most modern gaming PCs, initialize the drive as GPT, create a New Simple Volume, assign a drive letter, and format it as NTFS.

Choose a recognizable volume name such as Games, Storage, or Recordings. Once formatting is complete, the drive should appear in File Explorer and be ready to use. Because formatting can erase existing data, carefully confirm the drive’s capacity and identity before making changes.

TROUBLESHOOTING

What to Do If Your New Drive Does Not Appear

If a new SSD or hard drive does not appear in File Explorer, open Disk Management and identify it by capacity. A new, empty drive may appear as Not Initialized, Unallocated, or Offline and may need to be initialized, brought online, assigned a drive letter, and formatted before it can be used. Do not initialize or format a previously used drive unless you have confirmed that its existing data is no longer needed.

If the drive is missing from Disk Management, shut down the PC and check the installation. Make sure an M.2 NVMe SSD is fully inserted into a compatible slot and secured correctly. For a SATA SSD or hard drive, confirm that both the SATA data cable and SATA power connection are firmly seated.

Some motherboards disable certain SATA ports when specific M.2 slots are occupied, and some M.2 slots may support only particular drive types or processor configurations. Review the motherboard manual before changing BIOS settings or removing major components. Valhalla owners should contact support if the drive remains undetected or access requires removing the graphics card.

PUT YOUR STORAGE TO WORK

Start Using Your New Storage Drive

Once the new drive appears in File Explorer, you can begin using it for games, recordings, applications, backups, or general storage. Create clearly labeled folders so files remain organized and the drive’s purpose is easy to identify later.

Game launchers such as Steam, Xbox, and Epic Games allow you to select a different installation location or create an additional game library on the new drive. You can also change Windows storage settings so future documents, media, and applications save to the new location automatically.

For the best experience, keep frequently played games and performance-sensitive applications on an M.2 NVMe or SATA SSD. Traditional hard drives and external drives are generally better suited for backups, recordings, media libraries, and archived files.

STORAGE UPGRADE FAQ

Gaming PC Storage Upgrade Questions

Common answers about choosing a compatible SSD or hard drive, installing additional storage, configuring a new drive in Windows 11, and troubleshooting storage that does not appear.

Check your motherboard and case specifications before purchasing. Confirm that you have an available M.2 slot or SATA port, that the drive’s interface and physical size are supported, and that any required mounting space, cables, or power connections are available. Valhalla customers can contact support for compatibility help before purchasing a drive.

Yes. Adding a secondary SSD or hard drive does not require reinstalling Windows or changing your existing operating system drive. After installation, the new drive may only need to be initialized, formatted, and assigned a drive letter through Disk Management.

A 1TB SSD is a practical minimum for a smaller game library, while 2TB or more provides more flexibility for modern games, recordings, applications, and creative files. Choose capacity based on your current storage usage, expected future needs, and how many large games you plan to keep installed.

Planning a new system instead? Our Custom PC Builder lets you request the storage capacity, performance, and upgrade room you need.

Many modern motherboards include integrated M.2 heatsinks, and some high-performance SSDs include their own. Use one heatsink rather than stacking both, remove any protective film from the thermal pad, and follow the drive and motherboard instructions. Lower-power drives may operate without one, but a heatsink can help control temperatures during sustained use.

For most modern gaming PCs, an M.2 NVMe SSD is the preferred option because it installs directly on the motherboard, requires no separate cables, and offers higher transfer speeds. A SATA SSD is still a responsive and reliable upgrade when your M.2 slots are already occupied or unavailable.

A newly installed drive may be detected by Windows but remain unavailable until it is initialized and formatted. Open Disk Management and look for a drive marked Unknown, Not Initialized, or Unallocated. When the drive is missing entirely, recheck its installation, connection, and motherboard compatibility.

PCIe NVMe drives are generally backward compatible, so a Gen5 SSD can normally operate in a compatible Gen4 M.2 slot. However, it will run at the maximum speed supported by the slot rather than its full advertised Gen5 performance. Always verify compatibility in the motherboard manual.

Yes, many games can be installed on an external SSD or hard drive. An external SSD connected through a high-speed USB port will provide better loading performance than an external hard drive. For frequently played or performance-sensitive games, an internal M.2 NVMe or SATA SSD remains the better choice.
