THERMALS & PERFORMANCE

How CPU Cooling Affects Gaming PC Performance

Custom Valhalla watercooled gaming PC with RTX 4090, Ryzen 7 7800X3D, clear hardline tubing, white lighting, and premium liquid cooling.

A gaming CPU changes frequency, power, and temperature constantly as workload shifts. The cooling system has to move that heat away fast enough for the processor to hold the clocks and power levels expected from the build, without turning normal use into unnecessary noise.

Valhalla plans the cooler with the CPU, chassis, fan layout, workload, and noise target already in view. Mounting, airflow, fan and pump control, and sustained-load testing are treated as parts of the same thermal system.

CPU COOLING THERMAL VALIDATION AIO & AIR FAN CURVES
Custom Valhalla watercooled gaming PC with RTX 4090, Ryzen 7 7800X3D, clear hardline tubing, white lighting, and premium liquid cooling.

THE SHORT ANSWER

Can Better CPU Cooling Improve Gaming Performance?

Cooling can influence sustained performance when heat becomes the limiting factor. A larger cooler on its own is not an FPS upgrade. Modern processors manage clocks and power dynamically. A capable thermal solution gives the CPU room to operate within its intended limits; an inadequate or poorly installed one can force frequency and power down sooner under heavy load.

A single peak temperature tells only part of the story. Workload, CPU model, ambient temperature, fan response, chassis airflow, and the processor’s own control logic all matter when judging a result.

Valhalla reviews temperatures, clocks, acoustics, and stability together in the finished PC.

What matters is repeatable thermal performance that makes sense for the hardware and workload.

COOLING AS A SYSTEM

Four Things Have to Work Together

A good cooler can still perform poorly if the mounting, airflow, or controls around it are wrong.

01

THERMAL CAPACITY

The cooler has to make sense for the processor’s power draw and the sustained work the system is expected to handle.

02

MOUNTING & CONTACT

Cold-plate contact, mounting pressure, thermal interface, and orientation determine how effectively heat leaves the CPU.

03

AIRFLOW PATH

The heatsink or radiator needs useful airflow without creating a layout that compromises the GPU or the rest of the chassis.

04

CONTROL RESPONSE

Fan and pump control should respond predictably to load, keeping temperatures in check without making the system louder than it needs to be.
COOLING CHANGES WITH THE CPU

The Cooler Has to Match What the Processor Actually Does

The processor’s activity under load tells us far more about its cooling needs than the model name by itself. Modern desktop CPUs continually adjust frequency, voltage, and power as work moves between a few active cores and heavier multi-core demand. The cooler needs enough capacity that heat does not become the factor holding clocks or power back.

A gaming-focused processor can spend much of a session far below its heaviest synthetic load, while shader compilation, simulation, rendering, encoding, or background work can change the thermal picture quickly. That is one reason we plan cooling across our AMD Ryzen gaming PCs around the whole configuration; a generic cooler-size rule leaves too much out.

Higher-end systems add another layer because CPU heat shares the chassis with a powerful graphics card. In 4K gaming PCs, the GPU can dominate internal heat output even when the CPU itself is well below maximum package power.

The correct cooler gives the processor enough thermal margin for the workload the PC was built to sustain. Extra capacity should earn its place through lower noise, additional headroom, a specific chassis layout, or the customer’s preferred aesthetic.

AIR OR LIQUID

AIO and Air Cooling Are Different Tools

Air coolers and all-in-one liquid coolers solve the same basic problem in different ways. A tower air cooler moves heat from the CPU into a fin stack close to the socket. An AIO carries that heat to a radiator mounted elsewhere in the chassis, where fans release it into the surrounding air.

That difference changes more than appearance. Large air coolers place their mass around the CPU socket and can affect memory, motherboard, and side-panel clearance. AIOs introduce radiator dimensions, tube routing, pump control, fan placement, and additional chassis constraints. Compact systems such as the Mimir make those tradeoffs especially visible because every millimeter of internal space has a job.

At the other end of the spectrum, a system such as the Odin Elite Series can justify a larger cooling solution when the processor, workload, noise target, and chassis all benefit from it. A radiator does not improve a build simply by being present.

Neither cooling method has a built-in quality advantage. We use the one that fits the CPU, chassis, noise target, and physical layout with the fewest compromises.

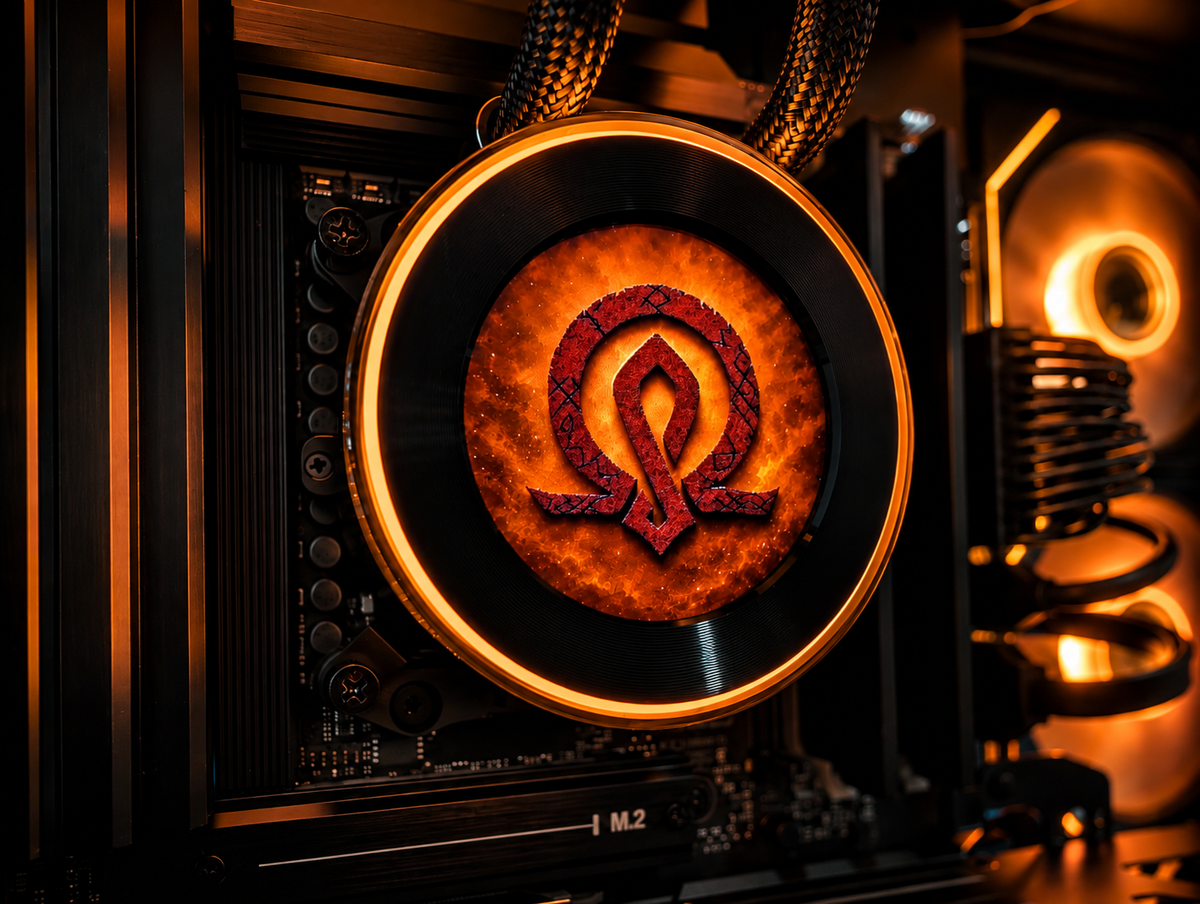

Valhalla gaming PC with AIO liquid cooler, LCD pump screen, and RGB cooling fans

BEFORE THE STRESS TEST

What We Check Before Thermal Validation Starts

A cooler can be excellent hardware and still deliver a poor result if installation, fitment, airflow, or control is wrong.

Thermal validation starts before the first stress test runs. The physical cooling path is reviewed during assembly so the cooler, motherboard, memory, GPU, fans, and chassis are not fighting one another for space or airflow.

Once the hardware is installed correctly, fan and pump settings are adjusted for the actual machine. We do not use one curve for every build.

Cooling capacity is appropriate for the CPU and expected workload

Mounting hardware, cold-plate contact, and thermal interface are installed correctly

Heatsink, radiator, tubes, memory, VRM, GPU, and side-panel clearances are verified

Radiator and case fan direction support the intended chassis airflow path

Pump and fan headers use the correct control mode for the installed hardware

Fan, pump, RGB, and sensor cables are secured away from moving parts

Fan and pump response is configured for the intended balance of temperature and noise

The cooling layout is ready for extended CPU and combined system load testing

The parts check gets the machine ready for testing. Approval comes later, after temperatures, clocks, noise, and stability have been observed under load.

INSTALLATION CHANGES THE RESULT

Mounting Quality Can Decide Whether a Good Cooler Works

The heat path begins at the CPU package. Before radiator size or fan count enters the conversation, the installation itself has to be right. Correct socket hardware, even mounting pressure, proper cold-plate contact, and an appropriate thermal-interface application all influence how effectively heat reaches the cooler.

This is also where component fitment becomes a motherboard issue. Socket position, memory height, VRM heatsinks, top-mounted radiators, and chassis clearances can all compete for the same space. The motherboard quality guide explains why the platform around the CPU affects far more than simple socket compatibility.

A poor installation can make capable hardware look inadequate. Replacing the cooler with a larger model will not fix weak contact, incorrect mounting hardware, or a blocked airflow path.

Cooling performance starts with the mechanical connection between the processor and the thermal solution. That connection has to be right before temperature data means much.

THE CASE IS PART OF THE COOLER

Radiator Placement and Case Airflow Cannot Be Separated

A radiator or tower cooler can only exchange heat with the air available to it. Intake restriction, exhaust paths, dust filters, GPU heat, fan orientation, and the distance between components all affect the temperature of the air reaching the cooling hardware.

There is no single radiator position we use for every build. Placement is chosen around where the case gets fresh air, how the GPU adds heat to the enclosure, and what clearances the hardware leaves us. An intake-mounted radiator can receive cooler outside air while adding some of that heat to the case. An exhaust-mounted radiator works with air that has already passed through the chassis.

The same concern shows up across modern GeForce RTX gaming PCs, where the graphics card may be the largest heat source in the enclosure. Our high-end gaming PC guide treats case choice and airflow as part of the thermal plan for exactly that reason.

Case pressure matters here too. The positive vs. negative airflow guide explains how intake and exhaust balance affect dust control, airflow direction, and the thermal environment around the cooler.

A larger radiator cannot rescue a chassis that is starved for useful airflow.

QUIET IS ALSO A PERFORMANCE TARGET

Fan and Pump Curves Should React, Not Overreact

CPU temperature can move quickly during short bursts of work. If every small spike produces an immediate jump to high fan speed, the system can sound busier than the workload actually demands. If the response is too relaxed, longer periods of heat may not get enough airflow.

A good curve sits between those extremes. Brief temperature jumps should not cause constant up-and-down fan noise, while a real workload still needs enough airflow once heat starts to accumulate. Pump settings follow the control method intended for the specific AIO instead of a universal percentage.

This is part of the balance expected from a high-performance PC. Cooling should respond decisively when the workload earns it, then settle back when the demand disappears.

A cooling setup can post acceptable temperatures and still be poorly tuned if ordinary use is unnecessarily loud.

TEMPERATURE NEEDS CONTEXT

A Single Peak Number Is Not a Thermal Verdict

Temperature screenshots are easy to compare and easy to misunderstand. Different processors use different thermal limits and boost strategies, and the same CPU can report very different numbers with changes in workload, ambient temperature, power settings, chassis airflow, or test duration.

Modern processors can intentionally use available thermal headroom to increase performance. A brief high reading by itself does not prove there is a cooling problem. Sustained throttling, unexpected clock changes, instability, shutdowns, excessive noise, or temperatures that make no sense for the processor and workload deserve much more attention than one isolated maximum value.

During validation, we look at the trend: temperature, clocks, power, fan response, stability, and the workload that produced those readings. Modern AM5 processors, for example, have to be judged within their own boost and thermal rules.

The lowest peak temperature is not the target. We want the machine to deliver repeatable clocks, sensible acoustics, and stable operation across the workloads it was built to run.

PROVEN UNDER SUSTAINED LOAD

Cooling Is Approved in the Finished System

Once the machine is assembled, the cooling plan has to prove itself. We apply extended CPU load and watch temperature, frequency, power, fan response, and stability after the cooler has had time to reach a steady operating state.

Combined CPU and GPU load adds another useful view because the chassis has to manage heat from both major processors at once. That can expose airflow interactions a CPU-only test never shows.

The Valhalla build and validation process places thermal testing alongside memory stability, storage health, drivers, power delivery, cooling response, and final inspection. The power supply quality guide covers the other side of that load: supplying the CPU and GPU while the cooling system carries the resulting heat away.

Final approval comes from the machine on the bench. If temperatures, clocks, noise, and stability remain where they should through sustained load, the cooling setup has done its job.

COOLING SHOULD FADE INTO THE BACKGROUND

The Best Cooling Setup Is the One You Stop Thinking About

Once the PC is on your desk, good cooling should feel uneventful. Clocks stay where expected, fan noise rises with real workload, and the system settles back down when the work ends.

That standard applies to Valhalla’s prebuilt gaming PCs as much as it does to one-off configurations. A defined hardware path lets us match the cooler, chassis, fan layout, and control settings before the system is offered for sale.

Dust is the part of the thermal picture that changes most after delivery. Filters and radiator fins cannot move air effectively when they become packed with debris, which is why the PC setup and maintenance hub remains part of the ownership path.

The broader Valhalla standard follows the same approach: the finished machine is what ultimately matters, so cooling is judged by the experience it helps produce instead of by the cooler specification alone.

By the time the system reaches the customer, those thermal decisions should already be settled. The PC should simply run the way it was built to run.

COMMON CPU COOLING QUESTIONS

Gaming PC CPU Cooling FAQ

Straight answers about CPU temperatures, AIO and air cooling, radiator placement, thermal paste, fan and pump control, and Valhalla thermal validation.

It can if heat is forcing the CPU to reduce clocks or power. When the processor already stays within its intended limits, a larger cooler may mostly change noise and thermal margin. The useful question is whether cooling is constraining the CPU during the workloads you actually run.

There is no single radiator size every gaming PC needs. CPU power draw, workload, chassis airflow, radiator position, fan quality, noise expectations, and physical clearance all matter. More radiator area can provide additional heat-exchange capacity, but the case still has to feed it enough air and the extra size has to serve a purpose.

Modern processors can increase frequency and power when operating conditions allow, so extra cooling headroom does not always produce a dramatically lower temperature. Workload intensity, ambient temperature, voltage and power draw, thermal-interface quality, case airflow, and the CPU’s own boost logic all influence the reading.

There is no universal pump-speed rule for every AIO. Some pumps are intended to run at a fixed or high speed, while others support different control methods. We follow the guidance for the specific cooler, configure the installed pump and fans accordingly, and verify the result under load.

We first verify cooler fitment, mounting, airflow direction, fan and pump connections, and control settings. The finished machine is then tested under extended CPU load while temperature, frequency, stability, and cooling response are monitored. Combined system load can also be used to confirm that CPU and GPU heat can coexist inside the chassis without abnormal temperatures, throttling, noise, or instability.

Both can cool gaming CPUs extremely well. We choose between them based on the processor, chassis, clearance, noise target, appearance, and available radiator space. AIOs and air coolers are different packaging solutions with different fitment and service considerations; neither category is a performance tier by itself.

That number alone is not enough to diagnose a problem. Maximum operating temperature and boost strategy vary by processor, and some modern CPUs are designed to use substantial thermal headroom under heavy work. Workload, duration, clocks, power, cooling response, and processor model all matter. For AMD systems, see the Ryzen AM5 CPU temperature guide for more specific context.

Yes. Radiator placement changes the air available to the cooler and where the rejected heat goes next. We choose the position from the chassis layout, GPU heat output, intake and exhaust path, tube routing, and available clearance. The rest of the airflow plan matters just as much as whether the radiator is mounted at the front, top, or side.

Dust should be checked often enough that filters, heatsinks, fans, and radiator fins do not become airflow restrictions. Pets, carpet, room dust, operating hours, and case design all affect how quickly buildup occurs. The gaming PC cleaning guide covers routine filter, fan, heatsink, and radiator cleaning in detail.

No cooling adjustment is required for normal first use. The installed cooler, fan and pump settings, and system thermals have already been configured and validated before shipping. Follow the Valhalla first boot and setup guide when the system arrives.
