HARDWARE & PLATFORM

Why Motherboard Quality Matters in a Gaming PC

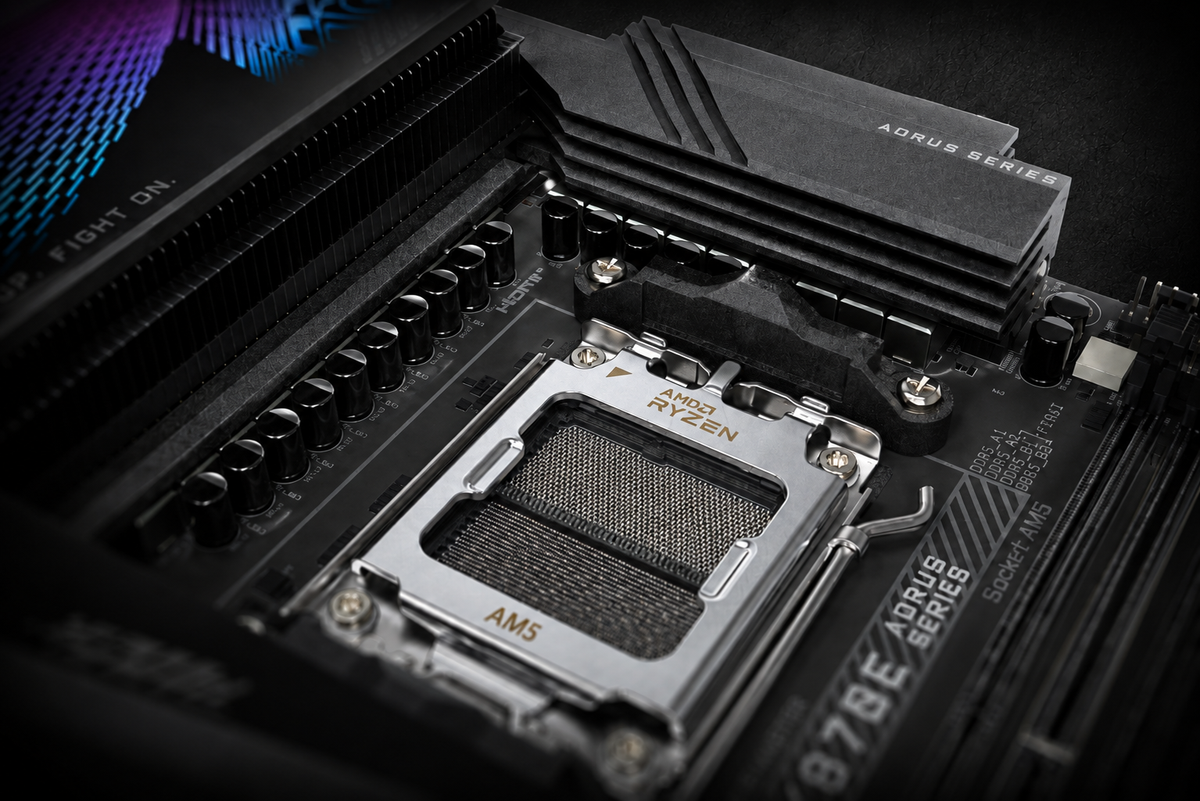

Close-up of an AM5 motherboard VRM heatsink and power delivery area next to the AMD Ryzen CPU socket.

A motherboard is the foundation of the entire gaming PC. It handles CPU power delivery, DDR5 memory support, PCIe and M.2 connectivity, cooling connections, BIOS features, and future expansion.

Valhalla matches the board to the processor, graphics card, memory, storage, cooling, and workload, then configures and validates the platform before delivery.

VRM & POWER DELIVERY DDR5 & MEMORY TUNING PCIE & NVME BIOS & VALIDATION
Close-up of an AM5 motherboard VRM heatsink and power delivery area next to the AMD Ryzen CPU socket.

THE SHORT ANSWER

Does Motherboard Quality Matter for Gaming?

Yes—but the difference is rarely a simple FPS gain. When two motherboards let the same CPU, GPU, and memory run properly, average frame rates can be very close. Where quality shows up is in power delivery, thermals, memory stability, expansion, connectivity, firmware, and how much room the system has to grow.

Compatibility alone is a low bar. A board can support the processor on paper and still be a poor fit because of weak VRM cooling, awkward slot placement, limited M.2 options, too few fan or pump headers, or a BIOS that lacks useful recovery and tuning features.

Professional integration matters because those details overlap. Valhalla selects the motherboard around the rest of the hardware, configures BIOS and memory settings, sets up platform drivers and cooling behavior, and stability-tests the finished PC before it ships.

The right motherboard is not always the most expensive board. It is the board that gives the specific CPU, GPU, memory, storage, cooling system, and workload the electrical and platform support they actually need.

Power Delivery Matched to the CPU

The VRM and heatsink design need enough headroom for the processor and its sustained power demands.

Memory, Storage & Expansion Planned Together

DDR5, M.2 storage, PCIe lanes, GPU spacing, networking, and future expansion all compete for space and bandwidth on the same board.

Configured and Validated Before Delivery

BIOS settings, memory profiles, drivers, fan behavior, thermals, and overall stability are checked before delivery.

WHAT QUALITY ACTUALLY CHANGES

A Motherboard Has to Support More Than the CPU

A good motherboard gets several things right at once: power delivery, cooling, memory support, firmware, PCIe and M.2 layout, connectivity, and fitment. Each one has to make sense for the hardware around it.

What a Proper Match Provides

A properly matched board gives the hardware enough power, connectivity, cooling support, firmware control, and expansion room without creating avoidable compromises.

VRM capability and heatsinks appropriate for the processor
DDR5 support matched to the planned capacity and memory profile
PCIe and M.2 layout that works with the GPU and storage plan
Enough fan, pump, USB, networking, and internal headers
BIOS, recovery, and diagnostic features suited to the platform

What a Poor Match Can Cost

The wrong board may still boot and run, but it can leave less thermal headroom, restrict storage or expansion, complicate memory tuning, or make future service harder.

Higher VRM temperatures or less power-delivery headroom
M.2 or PCIe lane sharing that restricts future expansion
Less margin for high-capacity or high-speed DDR5
Too few headers or ports for the case and cooling hardware
Fewer recovery and diagnostic tools when service is needed

The chipset name is only part of the story. Two motherboards using the same chipset can differ substantially in VRM design, cooling, PCB construction, memory layout, BIOS features, networking, I/O, and expansion.

BEFORE A BOARD EARNS ITS PLACE

What Matters Before a Motherboard Is Approved

Customers should not have to decode VRMs, QVLs, lane diagrams, or BIOS revisions. Those details matter because they determine how well the motherboard fits the rest of the gaming PC.

VALHALLA REVIEWS WHY IT MATTERS WHAT WE VERIFY MOST IMPORTANT FOR
Socket, chipset & BIOS Defines CPU compatibility and available platform features Exact CPU support, chipset capability, BIOS readiness, and upgrade path Every system
VRM & motherboard cooling Controls how the processor receives regulated power Power-stage capability, heatsinks, airflow, and sustained CPU load High-end CPUs and heavy workloads
DDR5 / EXPO / XMP Affects memory capacity, training, latency, and stability DIMM layout, capacity, profile support, BIOS behavior, and validation Fast or high-capacity memory
PCIe & M.2 lane layout Determines how GPUs, NVMe drives, and expansion devices coexist Lane sharing, slot width, M.2 population, spacing, and future expansion Multi-drive and expansion-heavy systems
USB, networking & audio Defines the connectivity you actually use every day USB count and speed, Wi-Fi, Bluetooth, Ethernet, and audio requirements Peripheral-heavy and networked setups
Cooling & internal headers Connects fans, pumps, front I/O, lighting, and accessories Fan and pump headers, front USB-C, RGB/ARGB, sensors, and case connections AIO, custom cooling, and showcase builds
BIOS, recovery & diagnostics Controls setup, tuning, updates, and troubleshooting Memory controls, fan curves, Flashback/recovery, debug features, and updates Performance tuning and long-term service
ATX / Micro-ATX / Mini-ITX Determines fitment, expansion room, and connector access Case clearance, GPU spacing, cooler fitment, headers, and serviceability Compact and densely populated builds

These specifications do not exist in isolation. An M.2 socket can share bandwidth with a PCIe slot, memory behavior changes with DIMM count and CPU memory-controller quality, and a compatible socket may still need a newer BIOS. The full configuration matters.

CPU POWER DELIVERY

Why VRM Quality Matters

The motherboard voltage-regulator module, or VRM, takes power from the PSU and converts it into the tightly controlled voltage the processor needs. Phase count gets most of the marketing attention, but it represents just one part of the design. The controller, power stages, chokes, capacitors, PCB, heatsinks, thermal pads, firmware, and airflow all affect how well the CPU is supplied under load.

That load can vary dramatically from one processor to another. A lower-power gaming CPU may be perfectly comfortable on a modest board, while a Ryzen 9, Core Ultra 9, or heavily threaded workstation chip benefits from much more electrical and thermal headroom. On AM5, Ryzen CPU temperatures also make more sense when viewed alongside boost behavior, motherboard power delivery, and the cooling system.

VRM quality is really about sustained behavior. The important question is whether the board can feed the processor cleanly and stay thermally controlled during the workloads the PC will actually see. A board that is excellent for a gaming-focused CPU can still be the wrong choice for a workstation load, even when both processors use the same socket.

Flagship builds raise the stakes further. With top-tier CPUs and GPUs, weaker supporting hardware has fewer places to hide. Power delivery, cooling, memory, storage, and airflow all need enough margin to support the level of performance the system is expected to sustain.

PRICE IS NOT THE STANDARD

Why More Expensive Isn’t Always Better

Price is a poor shortcut for motherboard quality. A premium board may offer no meaningful increase in average FPS over a well-designed midrange model when both are running the same CPU, GPU, memory, and storage correctly.

What the extra money usually buys is capability: stronger VRM hardware, larger heatsinks, additional M.2 sockets, faster networking, more high-speed USB, extra PCIe expansion, better audio, more internal headers, debug displays, BIOS recovery tools, and other convenience features. Those additions are valuable when the system has a reason to use them.

A creator workstation with several NVMe drives, capture hardware, fast networking, and a Ryzen 9 needs a different motherboard than a gaming PC built around one graphics card and one or two SSDs. That balance is a large part of what makes a high-end gaming PC worth its cost: expensive parts matter most when the rest of the system can support them properly.

Going too cheap creates its own problems. The better target is enough motherboard for the CPU, memory, storage, cooling, and expansion plan, without spending on features that will sit unused.

CHIPSET IS ONLY THE START

Chipsets Define Features, Not Motherboard Quality

The CPU socket determines physical processor compatibility. The chipset shapes many of the features around that processor, including PCIe connectivity, USB, SATA, expansion, and tuning options.

On AMD AM5, current boards span X870E, X870, B850, B840, and earlier chipset families. Intel platforms are divided into feature tiers as well. A higher-tier chipset can unlock more connectivity and flexibility, but the chipset badge does not tell you how well the motherboard itself is built. VRM design, BIOS quality, memory implementation, slot layout, storage, networking, and I/O still vary from model to model.

The CPU and GPU matter far more to gaming performance, so matching the CPU and GPU to the performance target should happen before paying for motherboard features that may never be used.

Once the core hardware is decided, the chipset becomes useful for narrowing the field. From there, the actual board design is what determines whether it belongs in the build.

HIGH-SPEED HARDWARE NEEDS A PLAN

DDR5, PCIe and M.2 Have to Work Together

Modern motherboards carry extremely fast signals between the CPU, DDR5 memory, graphics slot, chipset, and NVMe storage. Those paths run through the PCB, traces, power planes, slots, sockets, controllers, and firmware, which is why headline specifications never tell the whole story.

DDR5 is a good example. The CPU's memory controller, motherboard topology, BIOS, DIMM capacity, number of installed modules, and the memory kit itself all influence training and stability. AMD EXPO and Intel XMP make setup easier, but a loaded memory profile still has to prove stable. Choosing between 16GB, 32GB, or 64GB of gaming RAM can also change what the platform is being asked to handle.

Storage has similar hidden dependencies. A motherboard may advertise several M.2 sockets and PCIe slots, yet populating one connection can reduce another slot's bandwidth or disable it entirely. The GPU, SSDs, and future expansion devices all have to fit the board's real lane layout.

Thinking ahead about gaming PC storage upgrades can prevent a seemingly minor motherboard limitation from becoming an expensive annoyance later.

THE BOARD HAS TO FIT THE BUILD

ATX, Micro-ATX and Mini-ITX Have Different Priorities

ATX, Micro-ATX, and Mini-ITX describe size, not performance tier. A compact motherboard can run extremely fast hardware, but less board area means fewer places for memory slots, PCIe expansion, M.2 sockets, power delivery, internal headers, and connectors.

That changes the design priorities. In a Mini-ITX build, GPU clearance, cooler fitment, cable routing, radiator placement, heat density, and service access can matter as much as the board's feature list. A full-size ATX system has more physical freedom, so the same tradeoffs are often easier to manage.

Comparing full-size, Micro-ATX, and Mini-ITX system designs makes those differences obvious. As the chassis gets smaller, connector placement, airflow, component clearance, and access become increasingly important.

Compact systems can still be extremely capable. They simply demand tighter coordination between the motherboard, cooling system, graphics card, storage, power supply, and chassis.

THE MOTHERBOARD IS NOT FINISHED AT INSTALLATION

BIOS, Drivers and Validation Complete the Build

Hardware selection is only half of the motherboard story. BIOS or UEFI settings control memory profiles, processor behavior, fan curves, boot behavior, and many platform-level features. Firmware version can determine whether a newer processor is supported at all, while BIOS Flashback, Clear CMOS, debug LEDs, and POST-code displays can make future troubleshooting much easier.

Windows adds another layer. Motherboard-specific chipset and platform drivers affect communication with audio, Ethernet, Wi-Fi, Bluetooth, USB controllers, and other onboard hardware. Using the correct packages helps keep the operating system and platform behaving as intended.

Valhalla's build and validation process includes BIOS configuration, memory profiles, fan curves, Windows and driver setup, CPU and GPU thermal checks, memory stability, storage health, power behavior, cooling response, WHEA monitoring, and final inspection.

A PC is not finished when the parts power on. Firmware, memory, thermals, storage, drivers, and power behavior still have to work together under real load before the system is ready to leave the bench.

PLATFORM VALIDATION

What Should Be Verified Before Approval

A balanced gaming PC should not require the customer to become a motherboard engineer.

The board needs to fit the exact CPU, GPU, memory, storage, case, cooling, networking, and expansion plan. Socket compatibility gets the process started; it does not finish it.

The goal is to catch limitations before assembly, then confirm the configuration under load once the system is complete.

CPU socket, chipset, and BIOS support confirmed for the exact processor

VRM capability and motherboard cooling matched to the CPU and workload

DDR5 capacity, DIMM layout, EXPO/XMP profile, and memory behavior reviewed

GPU, PCIe, M.2 NVMe, and expansion lane sharing checked as a complete layout

USB, Wi-Fi, Ethernet, audio, storage, and rear I/O matched to the system

Fan, pump, front USB-C, RGB, and internal headers matched to the case and cooling

ATX, Micro-ATX, or Mini-ITX fitment and connector access verified

BIOS, firmware, drivers, memory stability, thermals, and diagnostics validated

WHY VALHALLA HANDLES THE PLATFORM FOR YOU

We Do More Than Pick a Compatible Motherboard

A motherboard is a good example of why a professionally built gaming PC is more than a parts list. The board has to suit the processor electrically, fit the case and GPU physically, support the memory and storage plan, connect cleanly to the cooling system, and remain stable once firmware and drivers are configured.

Valhalla handles those decisions before assembly and checks them again once the machine is running. Hardware selection, BIOS setup, memory configuration, thermal behavior, drivers, and stability are treated as parts of the same build rather than separate tasks.

Customers who want a proven starting point can choose from built-to-order gaming PCs organized around different performance and form-factor goals. For more specific needs, the Custom PC Builder starts with the games, workload, budget, space, and visual direction instead of asking for a finished parts list.

A high-refresh gaming system, compact build, streaming PC, and flagship 4K workstation put very different demands on the motherboard. The right board is the one that makes sense for the machine around it.

MOTHERBOARD QUESTIONS THAT MATTER

Gaming Motherboard FAQ

Straight answers about motherboard performance, VRMs, chipset tiers, DDR5, PCIe, BIOS support, and why Valhalla matches and validates the platform as part of the complete gaming PC.

Usually not directly. If two motherboards allow the same CPU, GPU, and memory to run correctly, average FPS can be very similar. The motherboard matters when power delivery, memory stability, thermals, firmware settings, or PCIe configuration prevents the hardware from operating as intended. For systems focused on high frame rates at lower resolutions, compare the 1080p gaming PC collection.

Motherboard quality comes from the complete implementation: VRM power delivery, heatsinks, PCB design, DDR5 support, PCIe and M.2 layout, BIOS maturity, networking, rear I/O, internal headers, and diagnostic features. Those priorities vary across system classes; the complete gaming PC lineup shows how platform requirements change from entry-level to flagship builds.

More expensive motherboards commonly add stronger power delivery, larger heatsinks, more M.2 and PCIe connectivity, faster USB and networking, upgraded audio, additional fan and pump headers, debug displays, BIOS recovery features, and premium convenience features. The right value depends on the system around it, which is why an entry-level gaming PC and a flagship build should not be judged by the same motherboard requirements.

Both processors use the AMD AM5 platform, but the right motherboard depends on more than socket compatibility. A 9800X3D gaming-focused system and a Ryzen 9 build intended for heavier productivity can justify different VRM, storage, networking, and expansion priorities. For current configurations built around the gaming-focused chip, see the Ryzen 7 9800X3D gaming PC collection.

Not every gaming PC needs PCIe 5.0 everywhere. What matters is whether the board provides the bandwidth, M.2 sockets, GPU slot configuration, and lane allocation the system needs now and for reasonable future expansion. Those considerations matter more in high-end configurations with faster storage and more demanding hardware, such as systems in the RTX 5080 gaming PC collection.

A better motherboard usually improves platform capability more than raw FPS. Stronger VRMs, better cooling, additional storage and expansion, better networking, useful BIOS tools, and stronger diagnostics can make a system easier to configure, expand, and service. The built-to-order gaming PC lineup uses different platform directions because not every performance target needs the same motherboard tier.

A lower-cost motherboard can become a limitation if its VRM, cooling, firmware, memory implementation, or power configuration is not appropriate for the processor and workload. Budget does not automatically mean poor quality; correct matching matters more. The gaming PCs under $2,500 collection demonstrates how balanced systems can prioritize value without treating the motherboard as an afterthought.

There is no single best chipset for every gaming PC. Higher chipset tiers can provide more I/O, expansion, or tuning capability, but the actual motherboard design still matters. High-end platforms become more relevant as storage, connectivity, expansion, and CPU demands increase; compare the 4K gaming PC collection for examples of systems built around more demanding performance targets.

Yes. Motherboard topology, PCB routing, BIOS behavior, DIMM layout, memory capacity, and the CPU's integrated memory controller all affect training and stability. Enabling EXPO or XMP is not the same as proving the memory is stable, so configured memory should be validated as part of the finished system.

None is automatically faster. ATX generally offers the most expansion room, Micro-ATX balances size and flexibility, and Mini-ITX prioritizes compact dimensions. Smaller boards require tighter planning around cooling, headers, storage, GPU clearance, and serviceability. See the Mini-ITX gaming PC collection for compact systems built around those constraints.

LET US HANDLE THE PLATFORM

A Motherboard Chosen for the PC You Actually Need

There is no need to compare VRM phase counts, lane diagrams, memory QVLs, BIOS revisions, and header layouts yourself. Valhalla selects, configures, and validates the motherboard as part of the complete gaming PC.

Motherboard matched to the CPU, GPU, memory, cooling, and workload

BIOS, drivers, memory profiles, fan behavior, and platform settings configured

Thermals, memory stability, storage, power behavior, and system stability tested

A great gaming PC starts with the right foundation.

Get a Custom Recommendation Explore Built to Order

From the VRM and DDR5 layout to the last M.2 slot and BIOS setting, the platform is selected and validated as part of the complete Valhalla build.
