HARDWARE & PLATFORM

What Makes a Good SSD for a Gaming PC?

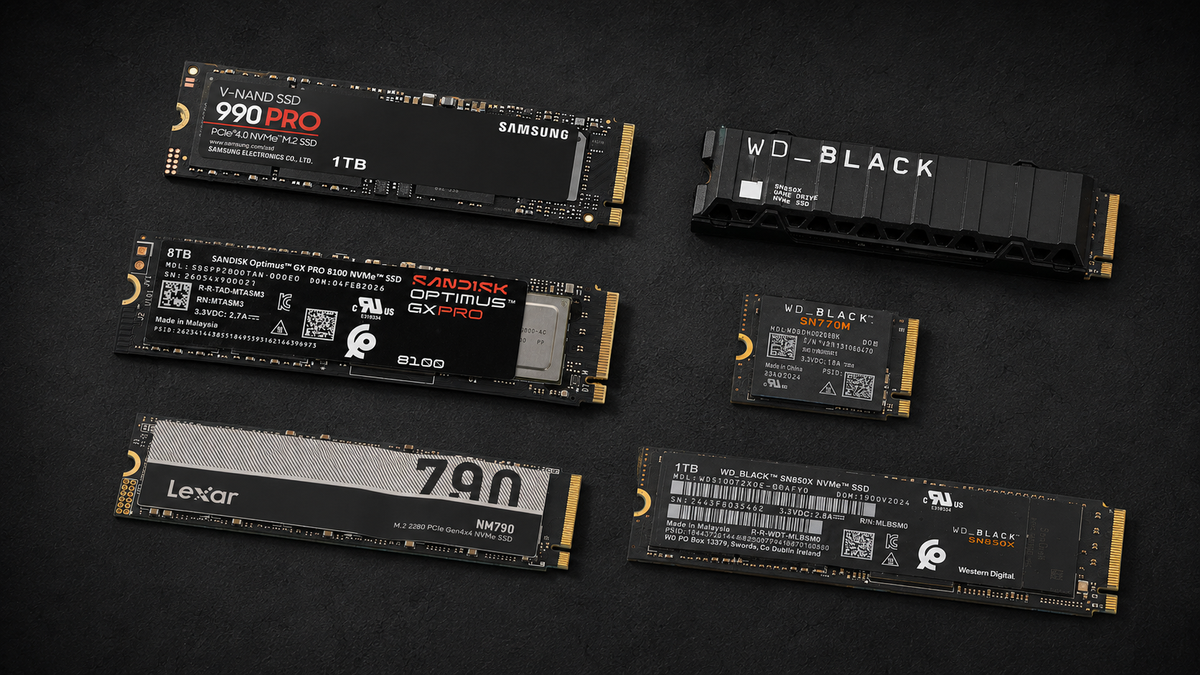

High-quality NVMe SSDs for gaming PCs including Samsung 990 Pro, SanDisk Optimus GX Pro, WD Black and Lexar drives

A good gaming SSD should make the PC feel quick without becoming something the owner has to think about. Windows, launchers, updates, installs, and game loads should all move smoothly, with enough capacity that the drive is not constantly fighting for free space.

PCIe generation matters, but it is only one part of the drive. Controller design, NAND, cache behavior, thermals, firmware, capacity, and motherboard layout all shape the result.

NVME STORAGE GEN4 VS GEN5 NAND & CACHE M.2 THERMALS
High-quality NVMe SSDs for gaming PCs including Samsung 990 Pro, SanDisk Optimus GX Pro, WD Black and Lexar drives

THE SHORT ANSWER

What Matters Most in a Gaming PC SSD?

A good gaming SSD combines fast access, enough capacity, consistent performance, and a proven drive platform. Peak sequential speed matters, but it is only one part of the experience.

Controller design, NAND type, cache behavior, firmware, thermals, and the M.2 slot all influence how the drive performs once it is installed. Capacity matters just as much in practice: a fast drive becomes inconvenient quickly if the game library is constantly fighting for space.

For a gaming PC, the best SSD is the one that stays responsive, handles normal installs and updates without unnecessary slowdowns, fits the motherboard correctly, and provides enough room for the way the system will actually be used.

Storage should be selected as part of the complete PC, not by choosing the largest speed number on the box.

ANATOMY OF AN M.2 INSTALL

The SSD Is Only One Part of the Storage Path

NVMe performance depends on more than the drive itself. The M.2 slot, PCIe connection, mounting, cooling, and nearby hardware all shape how the storage subsystem behaves in the finished PC.

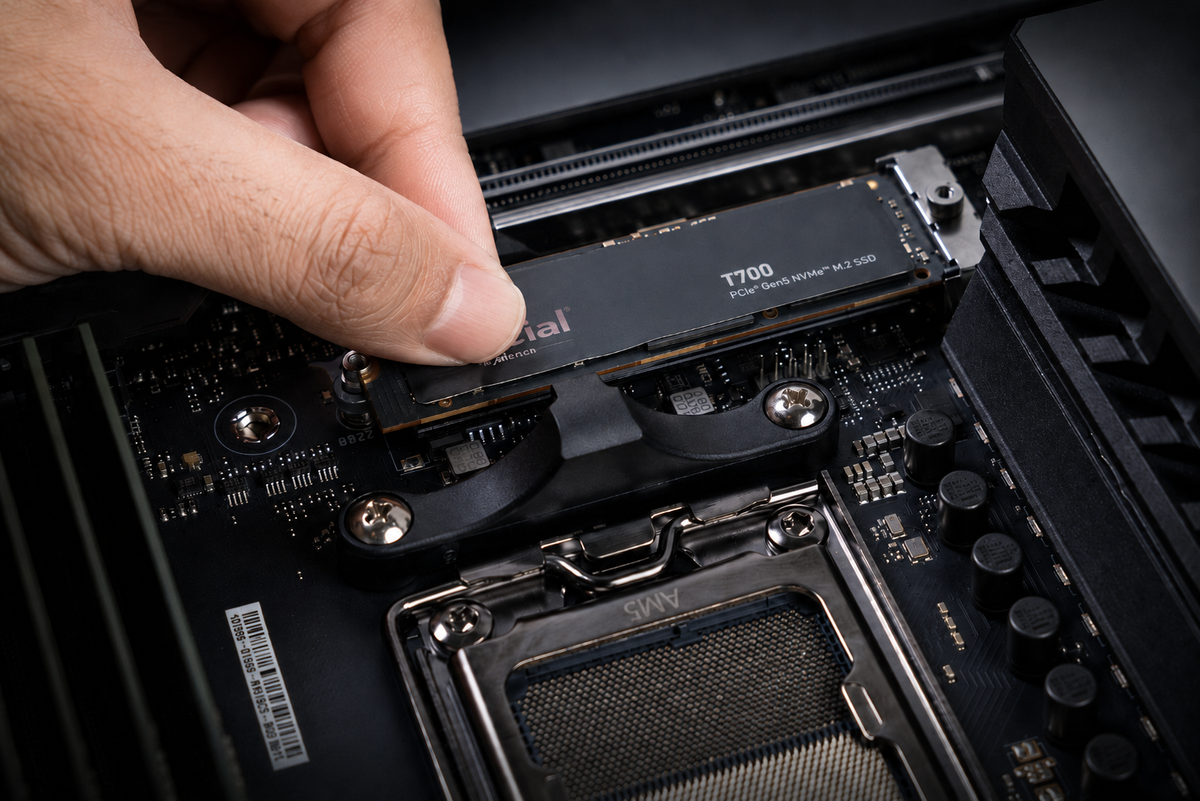

Crucial T700 PCIe Gen5 NVMe SSD being installed in an M.2 slot on a gaming PC motherboard
01

NVME SSD

The drive carries the controller and NAND that handle storage. Its performance still depends on the connection, cooling, firmware, and workload around it.

02

M.2 SLOT & CONNECTION

The M.2 socket provides the SSD’s PCIe link. Different slots can support different generations, lane counts, or shared resources on the same motherboard.

03

M.2 RETENTION & MOUNTING

The drive should sit flat and be secured at the correct mounting point. Proper retention also helps the heatsink and thermal pad make even contact.

04

PCIE X16 SLOT

Once the graphics card is installed, it often sits close to the M.2 area. That changes access to the drive and can increase the heat around it, making proper heatsink contact and case airflow more important.
GEN4 VS GEN5 VALUE

Gen4 vs. Gen5 SSDs for Gaming: Where the Difference Matters

Gen5 SSDs are impressively fast, and current flagship models can approach roughly twice the sequential read bandwidth of top Gen4 drives. That does not mean a game loads twice as fast or runs at a higher frame rate.

The SSD is responsible for moving data, not rendering frames. Once the game is running, the CPU, GPU, memory, engine, and graphics settings do most of the work that determines FPS. For a gaming PC under $2,500, paying a large premium for Gen5 can be hard to justify if that money could buy more capacity or improve a component the player will notice more.

A well-chosen Gen4 drive is therefore our default value target for many gaming systems, with capacity matched to the game library and workload. Gen5 belongs in the build when the extra bandwidth serves a real purpose.

BEYOND PEAK SSD SPEED

Sequential Speed Is Only One Part of SSD Performance

Sequential read and write figures describe large, orderly transfers under favorable conditions. Real PC use is less tidy: game updates, shader caches, save data, applications, launchers, and Windows all create smaller mixed requests.

Two drives with similar headline bandwidth can therefore behave differently. Controller efficiency, random I/O, firmware, NAND latency, cache strategy, queue depth, and temperature all matter. In a high-end gaming PC, storage needs to fit the rest of the platform rather than win one isolated benchmark.

A 14,000 MB/s result can be completely real and still tell you very little about how much better the drive will feel in a game.

BURST VS SUSTAINED SPEED

What Happens When an SSD Cache Fills

Short benchmarks often show the drive at its best. Longer writes reveal what happens after the fast cache has less room to help.

BURST

Data Lands in the Fast Cache

Short writes can land in a fast SLC-style cache, giving the drive very strong burst-speed results at the start of a transfer.

CACHE LIMIT

The Fast Cache Starts Filling

As the transfer continues, the available fast cache begins to fill, leaving less room for the easiest part of the write.

STEADY STATE

The Drive Drops to Sustained Speed

Once the cache is exhausted, write speed settles closer to what the NAND, controller, firmware, and temperature can sustain.

RESULT

Sustained Writes Separate Drives

This is where similar-looking SSDs begin to differ during larger installs, longer captures, heavier file copies, and project work.
INSIDE THE SSD

NAND, Controllers, DRAM and HMB All Matter

An NVMe SSD is its own storage platform. The controller schedules reads and writes, manages error correction and wear leveling, and coordinates the NAND flash. Firmware determines how that hardware behaves over time.

TLC remains a strong fit for performance-oriented primary drives because it balances speed, endurance, and capacity well. QLC can make sense when capacity and price matter more, especially for read-heavy game libraries, but its write behavior and endurance targets are different.

DRAM is not a simple quality test either. Some drives keep mapping data in onboard DRAM; others use Host Memory Buffer to reserve a small amount of system memory for that job. A well-designed HMB drive can still be excellent for gaming. The same idea shows up in our RAM configuration guide: the complete design matters more than one isolated specification.

M.2 THERMALS MATTER

M.2 Thermals Can Change Sustained Performance

Fast NVMe controllers can run hot, and thermal management becomes more important on flagship Gen5 drives. Some are sold with dedicated heatsinks, while others rely on the motherboard’s M.2 cooling.

That cooling only works if the thermal pad contacts the drive correctly and the case can move heat away from the area. A loose heatsink, protective film left on a pad, poor contact, or a hot pocket beneath the GPU can all reduce sustained performance.

Storage planning therefore overlaps with the motherboard and chassis layout. If heat continues to build, SSD thermal throttling reduces performance to protect the drive. Good installation keeps normal gaming, updates, and file transfers away from that limit.

CAPACITY CHANGES THE OWNERSHIP EXPERIENCE

More Capacity Can Matter More Than More Peak Speed

Modern game libraries grow quickly. Expansions, high-resolution assets, mods, recordings, launchers, and applications can make 1TB feel cramped much sooner than expected.

Capacity also affects day-to-day convenience. A nearly full drive leaves less room for large updates, temporary files, caches, and new installs. When the storage budget is fixed, moving from 1TB to 2TB can be far more noticeable than moving from a strong Gen4 drive to Gen5.

If more space is needed later, our gaming PC storage upgrade guide covers M.2 NVMe, SATA SSD, hard-drive, and external storage options.

THE SLOT MATTERS TOO

M.2 Placement and PCIe Lanes Have to Be Planned

An M.2 drive can fit a slot physically and still not behave the same way it would in another socket. Depending on the motherboard, M.2 slots may connect through CPU lanes, chipset lanes, or shared resources.

Using certain slots can reduce another slot’s link width, disable a SATA port, or share bandwidth elsewhere. The board manual matters, especially once several drives or expansion cards are installed.

On the Mimir Traveler Series, access and compact thermals can matter as much as theoretical bandwidth. A larger Odin Elite Series has more room to work with, but the drives still need the right slots and cooling. We map that out before the build is finalized.

M.2 NVMe SSD positioned above an available gaming PC motherboard slot with the heatsink removed
LONG-TERM STORAGE QUALITY

Endurance, Firmware and Drive Health Belong in the Decision

Peak speed gets most of the marketing attention, but long-term storage quality also depends on NAND, controller maturity, firmware, error correction, thermal management, endurance ratings, warranty terms, and vendor support.

TBW is useful context for endurance, but ordinary gaming is usually far less write-intensive than recording, scratch-disk work, virtual machines, or large creative projects. And no endurance rating replaces a backup when the data itself is irreplaceable.

We prefer established storage platforms with a clear support path, then review drive health as part of the Valhalla build and validation process. The primary NVMe drive is also where our Windows 11 installation and system preparation begins.

HOW WE CHOOSE STORAGE

What We Check Before an SSD Goes Into a Build

The drive has to fit the customer’s workload, the motherboard, and the performance the system actually needs.

A gaming-only system, a creator workstation, and a machine working with very large local datasets can justify very different SSDs even when all three use M.2 NVMe storage. We look at sustained performance, endurance, controller and NAND quality, thermals, capacity, and the workload the drive will realistically handle rather than choosing from headline sequential speeds alone.

We choose the drive and motherboard slot together, then confirm PCIe generation, lane availability, heatsink clearance, cooling, drive health, usable capacity, and future expansion room before the system is approved. The goal is storage that performs consistently inside the finished PC, not simply an SSD that benchmarks well on paper.

Capacity fits the expected game library, applications, recordings, and working files

PCIe generation and drive tier match the actual workload

Controller, NAND, cache behavior, endurance, and warranty suit the role of the drive

The selected M.2 slot provides the intended link without unwanted lane-sharing compromises

Heatsink and thermal-pad contact are correct where cooling is required

Drive health and SMART status are reviewed during system preparation

Windows and applications are installed on the intended primary drive

Storage is included in final system validation

For most gaming builds, a high-quality Gen4 NVMe SSD remains the best value target.

STORAGE SHOULD MATCH THE MACHINE

The Best SSD Choice Matches the Workload

Storage is easy to overspend on because the fastest number is also the easiest one to compare. A Gen5 label looks newer, but the best SSD for gaming is still the one that fits what the PC will actually do. The customer should not have to decode controller designs, NAND configurations, thermal limits, or motherboard lane maps just to get storage right.

Those decisions should already make sense in the finished system.

Across Valhalla gaming PCs, we would rather put the budget into useful capacity and a proven drive platform than chase bandwidth the customer may never notice. Our built-to-order systems can be tailored around that need, while prebuilt systems are planned as complete configurations before they are listed.

If the machine needs something more specific, the Custom PC Builder gives us room to plan storage around the actual use case. The right SSD is the one that gives the finished PC the capacity, responsiveness, consistency, and value it needs.

COMMON GAMING PC STORAGE QUESTIONS

Gaming PC SSD FAQ

Straight answers about Gen4 vs. Gen5 NVMe, SSD capacity, DRAM, TLC vs. QLC, M.2 cooling, DirectStorage, and NVMe vs. SATA for gaming.

Usually not for a gaming-only PC. A strong Gen4 NVMe drive already offers very high throughput, while Gen5 costs more and rarely changes FPS or gameplay in a meaningful way. Gen5 makes more sense for storage-heavy professional work.

No. Microsoft specifies NVMe storage for games that use DirectStorage; PCIe Gen5 is not required.

No. Good DRAM-less NVMe drives can use Host Memory Buffer and perform very well in gaming. Onboard DRAM can still help in heavier mixed workloads, so the complete drive design matters more than the label.

High-performance NVMe drives benefit from proper cooling, especially Gen5 models. If the drive does not include its own heatsink, use the motherboard’s M.2 heatsink when the drive or board calls for it and make sure the thermal pad contacts correctly.

We confirm the intended drive is detected correctly, review drive health, install the operating system on the proper device, and include storage in final system validation.

Usually not. SSDs affect loading and data delivery, while FPS is primarily driven by the CPU, GPU, memory, game engine, and graphics settings.

2TB is a strong starting point for many modern gaming PCs. Large libraries, mods, recordings, and creative work can justify 4TB or more.

TLC is generally the stronger choice for a performance-oriented primary drive. QLC can still make sense when capacity and price matter more, especially for read-heavy game storage.

Usually, yes. Check for an available M.2 or SATA connection, lane-sharing limits, heatsink clearance, and physical access before buying another drive.

NVMe is the better default for a modern primary gaming drive. It uses PCIe and offers much more available bandwidth than SATA. SATA SSDs remain useful for secondary storage, but NVMe is the better fit when an appropriate M.2 slot is available.

STORAGE BUILT AROUND YOUR USE

Choose Capacity and Performance That Make Sense Together.

Tell us what you play, create, and store. Valhalla can match capacity, drive tier, motherboard placement, cooling, and expansion room to the system.

Gen4 or Gen5 selected around real workload value

Capacity, M.2 placement, lane layout, and cooling reviewed together

Storage health checked as part of final system validation

Storage should make the PC easier to live with, not just make the spec sheet look faster.
