What Does a Motherboard Chipset Actually Do?

Close-up of an AMD X870 motherboard chipset for a Valhalla custom gaming PC build, showcasing premium desktop motherboard hardware, high-performance gaming computer components, and modern PC build engineering.

A motherboard chipset is the platform’s I/O hub. It helps determine how much PCIe expansion, NVMe storage, USB connectivity, SATA support, and platform flexibility a motherboard can offer, while the CPU handles several of the most performance-critical connections directly.

This guide explains how a motherboard chipset works, what the chipset controls, how CPU and chipset PCIe lanes differ, why higher-tier AMD and Intel chipsets exist, how lane sharing works, and what actually matters when choosing a motherboard for a modern gaming or high-performance PC.

CHIPSET I/O PCIE LANES USB & STORAGE PLATFORM FEATURES
Close-up of an AMD X870 motherboard chipset for a Valhalla custom gaming PC build, showcasing premium desktop motherboard hardware, high-performance gaming computer components, and modern PC build engineering.

THE SHORT ANSWER

The Chipset Expands the Platform Around the CPU.

A motherboard chipset expands many of the platform’s I/O resources, including additional PCIe connectivity, USB, SATA, storage, and certain platform features.

The primary graphics slot and at least one high-speed NVMe connection are commonly attached directly to the CPU on modern desktop platforms. Additional devices can connect through the chipset and share its high-speed link back to the processor.

That is why a higher-tier chipset can add connectivity, expansion, and flexibility without automatically adding gaming performance. The exact motherboard still determines how those resources are exposed, cooled, routed, and configured.

Think of the CPU as the compute engine and the chipset as the platform’s I/O expansion hub. The chipset defines available resources; the motherboard determines how those resources become real ports, slots, and features.

CHIPSET RESPONSIBILITIES

What a Motherboard Chipset Controls—and What It Does Not

The chipset shapes part of the motherboard’s connectivity and feature set. It does not replace the CPU, and the chipset model alone does not determine gaming speed, motherboard quality, or how every lane is routed.

What the Chipset Can Influence

These resources are commonly provided or enabled through the chipset and its connection to the CPU.

Additional PCIe lanes for expansion devices
Additional M.2 and storage connectivity
USB port count, speed, and controller resources
SATA connectivity and platform I/O options
Certain overclocking and platform features

What the Chipset Does Not Decide Alone

Motherboard quality still depends on the exact board, component choices, firmware, and layout.

CPU or GPU performance by itself
VRM quality and power-delivery capability
Memory topology and BIOS quality
Audio codec, networking controller, or Wi-Fi implementation
Heatsinks, PCB quality, slot placement, and physical layout

Two motherboards using the same chipset can differ substantially in power delivery, storage layout, USB implementation, networking, audio, thermals, firmware, and expansion behavior.

BEFORE YOU COMPARE CHIPSETS

Compare the CPU Platform First, Then the Motherboard

A useful chipset comparison starts by separating CPU-direct resources from chipset-connected resources, then checking how the exact motherboard routes both.

Start with the processor family and socket. The CPU defines the platform family and commonly provides direct connections for system memory, the primary graphics slot, and selected high-speed storage. The chipset expands the motherboard around those CPU-direct resources.

Then read the exact motherboard specification sheet or block diagram. Chipset capability is a pool of available resources, not a promise that every board exposes every possible port or slot simultaneously. The board manufacturer decides how M.2 sockets, USB controllers, SATA ports, expansion slots, networking devices, and onboard features use that pool.

Confirm the CPU socket and supported processor family

Identify the primary GPU slot and whether it is CPU-connected

Check which M.2 sockets use CPU lanes and which use chipset lanes

Read the lane-sharing notes in the motherboard manual

Count the USB ports by speed, not just by connector shape

Check SATA ports, add-in slots, networking, and onboard controllers

Verify overclocking support for the CPU and memory platform

Judge the exact board’s VRM, cooling, BIOS, and layout separately

The chipset name is a platform clue—not a substitute for the motherboard specification sheet. A well-designed mainstream board can be a better fit than a poorly matched high-end board.

CPU-DIRECT CONNECTIONS

CPU vs Chipset PCIe Lanes: Not Everything Goes Through the Chipset

One of the most important parts of understanding how a motherboard chipset works is recognizing that the chipset is not the traffic controller for every high-speed device. The processor contains the memory controller and provides direct PCIe resources for selected hardware.

On typical current desktop platforms, the primary graphics slot connects directly to CPU PCIe lanes, and at least one high-speed NVMe connection is often CPU-attached as well. That keeps bandwidth-sensitive hardware on short, direct paths to the processor.

The chipset extends the platform beyond those direct resources. Additional M.2 sockets, secondary PCIe slots, SATA ports, USB controllers, networking devices, audio interfaces, and other onboard functions can depend on chipset connectivity or on controllers attached behind it.

This is why a higher-tier chipset does not automatically make the primary GPU faster. Two boards can give the graphics card the same CPU-direct connection while offering very different storage, USB, networking, and expansion around it. That is also why motherboard quality has to be judged beyond the chipset tier.

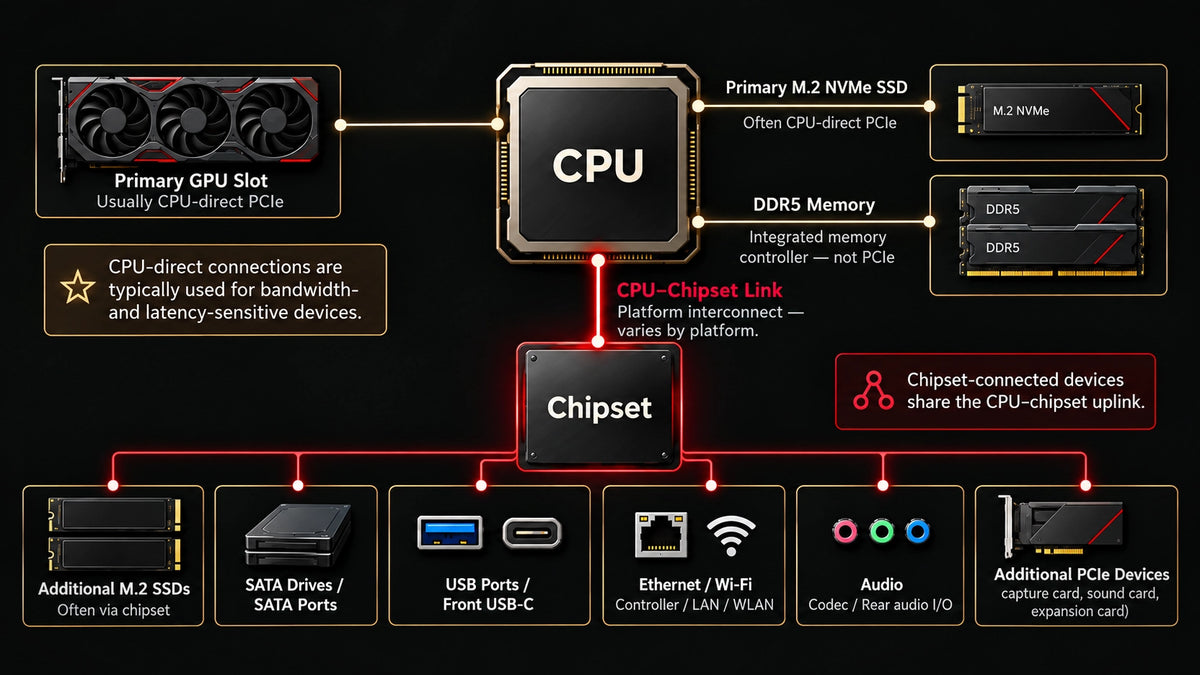

CPU vs chipset motherboard diagram showing GPU, NVMe SSD, DDR5 memory, USB, SATA, Ethernet, Wi-Fi, audio, and PCIe device connections
THE CPU-CHIPSET LINK

How Chipset-Connected Devices Reach the CPU

The chipset communicates with the processor through a dedicated high-speed interconnect. The exact technology and width vary by platform, but the principle is consistent: chipset-connected devices ultimately share that upstream path when they need to exchange data with the CPU or system memory.

That does not make chipset-connected devices inherently slow. USB peripherals, networking controllers, SATA drives, secondary NVMe drives, audio hardware, capture devices, and many expansion cards normally operate well within the available bandwidth.

Routing becomes more important when several high-bandwidth devices are active at the same time. Multiple fast SSD transfers, high-speed networking, external storage, and add-in cards can create workloads where shared bandwidth matters. In most gaming PCs, this is primarily an expansion-planning issue rather than an FPS issue.

Intel documents its CPU-to-chipset connection as DMI on the Z890 platform. AMD likewise publishes the total and chipset-provided I/O capabilities of the AM5 chipset family. The exact motherboard manual remains the final authority for how those resources are routed on a specific board.

WHAT THE CHIPSET CHANGES

AMD and Intel Chipset Tiers: Compare Features, Not FPS

Higher tier motherboard chipsets add I/O, expansion, and platform features, but do not automatically improve gaming performance.

PLATFORM EXAMPLE WHAT THE CHIPSET TIER ADDS WHAT IT DOES NOT GUARANTEE VERIFY ON THE BOARD
AMD X870E High AM5 I/O budget, standard USB4, extensive PCIe 5.0 capability, CPU and memory overclocking support Higher FPS, better VRM, better audio, or better BIOS by itself Exact M.2 layout, slot bifurcation, USB count, controllers, and sharing notes
AMD X870 USB4 standard and strong PCIe 5.0 platform support with fewer total I/O resources than X870E A meaningful gaming-performance increase over a well-matched B850 board How many expansion devices you can use simultaneously and at what link widths
AMD B850 Mainstream AM5 feature set with PCIe 5.0 NVMe support, memory overclocking, and optional USB4 Inferior CPU or GPU performance simply because the chipset sits below X870 GPU slot generation, secondary M.2 routing, rear I/O, and board-level power delivery
AMD B840 Entry-level AM5 feature set with PCIe 4.0 graphics and NVMe support, DDR5 memory overclocking, and a smaller high-speed I/O budget Poor quality; the exact board still determines implementation CPU overclocking limits, PCIe generation, USB options, expansion, and storage layout
Intel Z890 More chipset PCIe lanes, broader I/O, more SATA/USB potential, and CPU/BCLK/memory overclocking support A faster processor or graphics card at stock settings by chipset name alone Board VRM, PCIe slot routing, Thunderbolt/USB4 implementation, networking, and BIOS features
Intel B860 Mainstream 800-series connectivity and memory overclocking with fewer chipset lanes than Z890 A lower-quality motherboard or weaker gaming experience automatically M.2 count, add-in slots, USB layout, power delivery, and whether the features you need are present
Intel H810 A simpler platform focused on essential connectivity with a smaller expansion budget Unsuitability for every PC; feature requirements determine fit Memory configuration, expansion needs, storage count, rear I/O, and upgrade plans

Verify the exact motherboard manual, since slot sharing, M.2 routing, USB, and onboard controllers vary by model.

LANE SHARING

How Motherboard Lane Sharing Works

A motherboard has a finite number of CPU and chipset lanes, so manufacturers sometimes route one group of resources between multiple connectors. That is why installing an SSD in a particular M.2 socket can disable a SATA port, reduce the link width of another expansion slot, or make a secondary connector unavailable.

Lane sharing is not automatically a flaw. It allows a board to offer more physical connection options than most owners will use at the same time. The important part is knowing which combinations remain available when the system is fully populated.

The motherboard manual normally documents these relationships in its storage, expansion, or block-diagram section. Look for notes describing an M.2 socket sharing bandwidth with a PCIe slot, a secondary slot changing width when another device is installed, or SATA ports becoming unavailable when a specific socket is populated.

This becomes especially important in systems with several NVMe drives, capture cards, high-speed networking, storage controllers, or other add-in hardware. When adding storage, matching the new drive to the available M.2 sockets, lane-sharing rules, cooling, and physical clearance prevents a simple capacity upgrade from changing another part of the system unexpectedly.

USB, STORAGE & ONBOARD I/O

Chipset Capability Is Not the Same as Motherboard I/O

USB is a clear example of the difference between chipset capability and finished motherboard implementation. A chipset can support a pool of high-speed connectivity, but the board manufacturer decides how much becomes rear USB, internal headers, onboard devices, or additional controller bandwidth.

The same applies to SATA, secondary PCIe slots, extra M.2 sockets, Ethernet, Wi-Fi, audio, and other onboard features. Some functions use chipset resources directly; others rely on separate controllers that consume PCIe or USB connectivity behind the scenes.

Two motherboards with the same chipset can therefore have very different rear I/O, storage layouts, networking, and expansion behavior. The chipset defines part of the available resource pool; the board design determines how useful that pool becomes in the finished PC.

For a complete system, the right implementation is the one that matches the owner’s actual drives, peripherals, network speed, add-in hardware, and likely upgrades—not the board with the longest specification list.

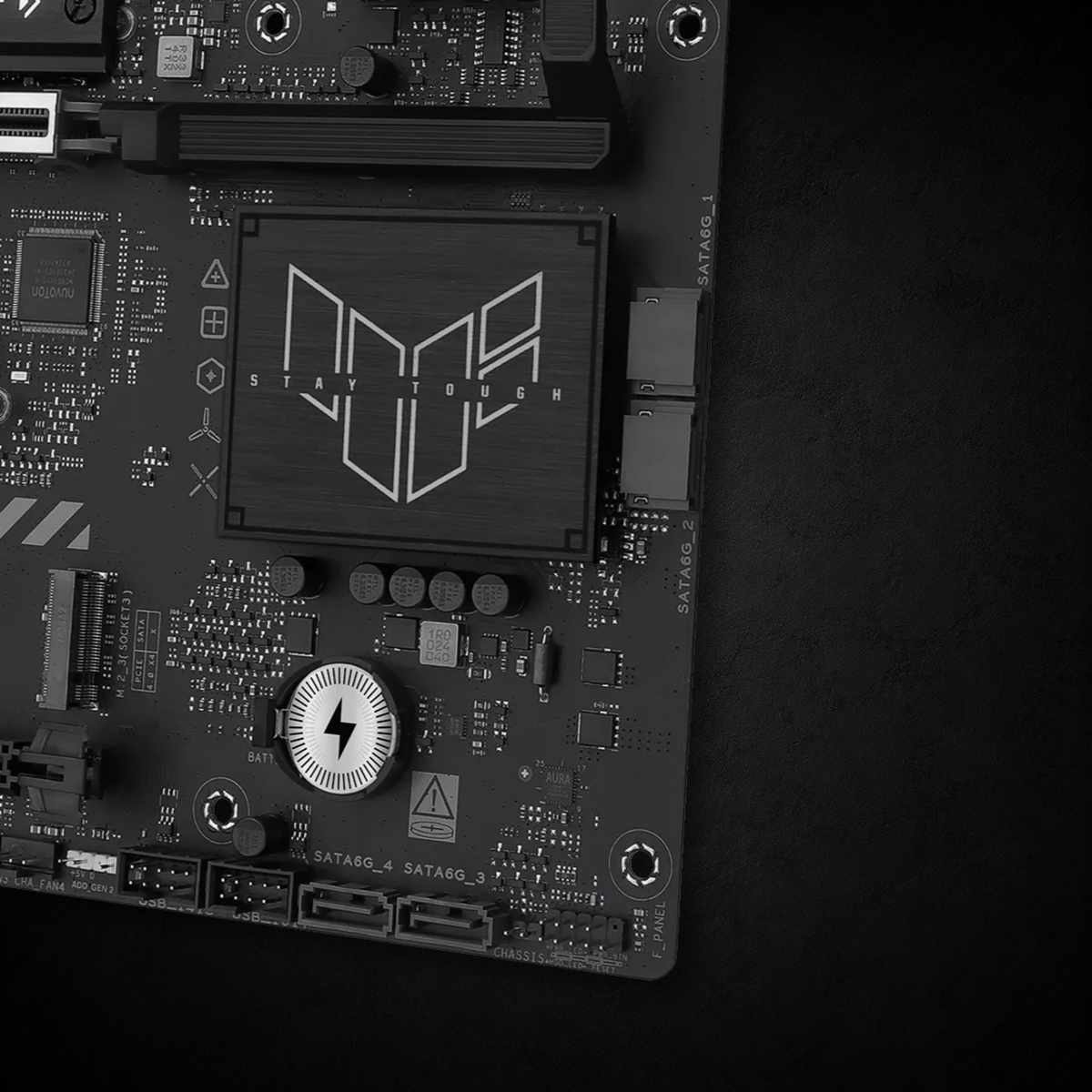

Gaming motherboard chipset area showing M.2 storage, SATA ports, onboard controllers, and internal connectivity
PERFORMANCE EFFECTS

Does a Motherboard Chipset Affect Gaming Performance or FPS?

Usually, not directly. If two motherboards allow the same CPU, GPU, memory configuration, and primary PCIe connections to operate correctly, moving to a more expensive chipset does not create a meaningful FPS increase by itself.

A chipset can affect the system indirectly when it changes what the platform is allowed to do. A higher tier may enable additional overclocking controls, provide more expansion resources, support more simultaneous high-speed storage, or avoid lane-sharing compromises in a complex configuration. Those are platform advantages, not an automatic frame-rate multiplier.

Motherboard implementation can matter more than chipset tier. Power delivery, BIOS behavior, memory training, thermals, slot routing, and firmware determine whether the installed hardware operates as intended under sustained load. That is why motherboard quality and chipset capability should be evaluated separately.

For most buyers, the right gaming motherboard chipset is the tier that supports every required feature, device, and realistic upgrade path without unnecessary platform compromises.

CHOOSING A CHIPSET TIER

How to Choose the Right Motherboard Chipset

Start with the hardware that must work on day one: the graphics card, number of NVMe drives, SATA storage, USB peripherals, network requirements, capture or audio hardware, and any expansion cards. Then add realistic headroom for the upgrades you are likely to make.

A mainstream chipset is often the correct choice for a gaming PC with one graphics card, a few NVMe drives, and normal USB requirements. A higher-end chipset becomes more useful when the build needs more simultaneous high-speed devices, broader expansion, additional storage, advanced overclocking controls, or a specific I/O feature set.

Form factor can limit the physical expansion available even when the chipset has resources left. Mimir’s Mini-ITX platform and Loki’s Micro-ATX platform illustrate that tradeoff: board size, cooling, clearance, and slot count have to be balanced inside a compact chassis.

A full-size system can prioritize a different kind of headroom. Odin’s X870 platform has more room to support a broader expansion plan around flagship hardware. None of those systems is defined by the chipset alone; the platform is chosen around the complete machine.

THE VALHALLA MOTHERBOARD STANDARD

What Valhalla Checks Beyond the Chipset

The chipset tells us what resources the platform can provide. The exact motherboard still has to fit the CPU, GPU, memory, storage, cooling, expansion, chassis, and long-term ownership plan.

We choose the chipset after the system requirements are clear, then evaluate the motherboard that implements it. The goal is not to push every build toward the highest tier; it is to preserve the connectivity and headroom the PC actually needs without paying for unused platform resources.

After assembly, the board is validated as part of the complete machine. Firmware, memory behavior, storage routing, PCIe devices, onboard controllers, cooling, drivers, and sustained stability all have to work together before the system is approved.

Chipset tier matched to the required I/O and expansion budget

VRM and power delivery appropriate for the selected processor

Primary GPU slot and M.2 routing confirmed before assembly

Lane-sharing behavior checked against the installed devices

Rear USB, internal headers, networking, and audio matched to the build

Memory topology and firmware support appropriate for the DIMM configuration

BIOS, chipset drivers, and onboard devices configured for the hardware

Completed system validated under real combined load before delivery

The customer should not have to decode chipset lane maps to know whether every installed device works together. That integration belongs in the system-design and validation process.

THE BOTTOM LINE

Choose the Right Motherboard Chipset

The best motherboard chipset is not automatically the highest tier. It is the one that provides enough I/O, storage, expansion, and platform control for the finished PC without forcing unnecessary cost or hidden compromises elsewhere.

Start with the CPU and the devices the system actually needs, separate CPU-direct connections from chipset-connected resources, then verify the exact board’s M.2 map, PCIe routing, USB implementation, networking, power delivery, memory support, and lane-sharing behavior.

That is why two systems built around the same processor can reasonably use different chipset tiers. Across the Valhalla gaming PC lineup, compact builds, gaming-first systems, and flagship platforms use different motherboard resources because their complete-system requirements are different. When those requirements fall outside an established configuration, the Valhalla Custom PC Builder starts with the workload, hardware, expansion, and chassis needs before the motherboard is selected.

MOTHERBOARD CHIPSET FAQ

Questions About Chipsets, PCIe Lanes, and Motherboard Features

Straight answers about what a motherboard chipset controls, CPU and chipset PCIe lanes, M.2 routing, gaming performance, AMD and Intel chipset tiers, and how those choices affect a complete PC.

The chipset expands the motherboard’s I/O and platform capabilities. Depending on the platform, it can provide additional PCIe lanes, USB connectivity, SATA ports, storage options, and support for certain overclocking or management features. It communicates with the CPU through a dedicated high-speed link rather than replacing the CPU’s own direct PCIe and memory connections. That distinction is one reason motherboard quality extends well beyond the chipset badge: power delivery, memory layout, BIOS support, slot routing, cooling, networking, and I/O are implemented by the complete board.

Not simply because it is X870E. AMD gives X870E a larger overall I/O budget and broader PCIe 5.0 and USB4 platform capabilities, while B850 targets a more mainstream feature set. If both boards run the same CPU, GPU, and memory correctly, the chipset name alone should not create a meaningful gaming-performance difference. AMD’s AM5 chipset specifications show the platform-level differences.

The distinction is easier to understand in complete systems. Baldur uses an MSI B850MPOWER around a Ryzen 7 9800X3D, while Odin uses an X870 platform where a larger flagship build places more emphasis on expansion and long-term platform headroom. The chipset follows the system’s requirements rather than determining its gaming speed by itself.

The primary graphics slot on mainstream modern desktop platforms is generally connected directly to CPU PCIe lanes rather than routed through the chipset. Additional PCIe slots may be CPU-connected, chipset-connected, or share lanes depending on the motherboard. That is why PCIe slot layout and lane routing have to be evaluated on the exact board instead of assumed from the chipset name. If multiple expansion cards are planned, the motherboard manual’s block diagram and slot-sharing notes become part of the compatibility check.

Yes, on some motherboards. Physical connectors can share a limited group of CPU or chipset lanes, so populating one M.2 socket may disable a SATA port, reduce another slot’s link width, or make a secondary connector unavailable. This is motherboard-specific and should be documented in the storage or expansion notes. A clean upgrade therefore starts by matching the new drive to the motherboard’s available storage connections and lane-sharing rules, not simply by finding an empty M.2 slot.

Not completely. The chipset provides connectivity that motherboard manufacturers can use, but boards often rely on separate Ethernet controllers, Wi-Fi modules, audio codecs, amplifiers, and other supporting components. Two motherboards with the same chipset can therefore have very different networking, wireless, audio, rear I/O, and internal connectivity. That is another reason the complete motherboard implementation matters more than the chipset badge alone. The chipset defines available resources; the board manufacturer decides how those resources are actually exposed.

Not directly in most properly configured systems. If the CPU, GPU, memory, and primary PCIe connections operate at their intended speeds, a higher-tier chipset does not normally add FPS by itself. The chipset matters more when the PC needs additional expansion, storage bandwidth, overclocking capability, or several high-speed devices at once. The exact board’s power delivery, firmware, cooling, memory behavior, and slot layout can influence whether the hardware performs as intended. Likewise, a real CPU or GPU bottleneck has to be identified from workload behavior rather than inferred from the chipset tier.

Z890 provides a larger chipset I/O and PCIe budget and supports CPU, BCLK, and memory overclocking on compatible hardware. B860 supports memory overclocking, but provides fewer chipset PCIe lanes and uses a DMI 4.0 x4 link instead of Z890’s x8 link. That does not make every Z890 board better than every B860 board; the exact motherboard still determines power delivery, cooling, slot routing, networking, and the I/O exposed to the user. Intel documents the Z890 chipset capabilities directly.

The Leviathan’s Gigabyte Z890 AORUS ICE platform shows how that chipset becomes one part of a complete Intel Core Ultra configuration rather than a standalone performance feature. That same platform-first approach carries through Valhalla’s gaming PC build and validation process.

They can use either. Many motherboards provide a primary M.2 socket connected directly to the CPU and additional sockets connected through the chipset. The exact routing differs by board, so systems with several NVMe drives should be planned around the complete M.2 and PCIe map. Available M.2 sockets, lane sharing, cooling, and physical compatibility all matter before another drive is installed. The SSD itself still matters too: controller design, NAND, cache behavior, endurance, and thermals can matter more to the finished storage experience than the interface label alone.

Not by itself. Memory behavior depends on the CPU’s integrated memory controller, motherboard topology, BIOS, DIMM configuration, memory kit, and platform rules. The chipset can determine whether certain memory-overclocking features are available, but a higher-tier chipset does not automatically make the same memory kit faster or more stable. DDR5 frequency, timings, DIMM count, EXPO or XMP profiles, and memory training all have to work together on the finished platform. Capacity is a separate decision: the difference between 16GB, 32GB, and 64GB of gaming RAM is about workload headroom, not chipset tier.

We start with the processor, graphics card, NVMe and SATA requirements, expansion cards, USB connectivity, networking, overclocking plans, chassis size, and realistic future upgrades. Once those requirements are defined, the exact motherboard is checked for power delivery, PCIe routing, headers, memory support, cooling, firmware, and fitment.

If those needs align with one of Valhalla’s built-to-order gaming PC platforms, the chipset is simply part of a configuration already organized around a specific performance and form-factor goal. When the storage, expansion, case, workload, or aesthetic requirements are more specific, the Valhalla Custom PC Builder lets the motherboard platform follow the system rather than forcing the rest of the PC around a chipset selected first.

A PLATFORM BUILT AROUND THE WHOLE PC

Define the System. Then Match the Platform.

Tell us your CPU and GPU class, storage, expansion, networking, chassis, and upgrade goals. Valhalla will match the motherboard and chipset to the complete system.

CPU-direct and chipset-connected devices planned together

Lane sharing, storage routing, USB, networking, and expansion checked before assembly

Completed system configured and validated before delivery

The right platform leaves the important requirements resolved.

Build Your Valhalla PC Browse All Systems

Platform, power delivery, memory, storage, expansion, firmware, cooling, and validation should work as one system.
